NU-X Verdugo Series Fireman Dual Channel Distortion Pedal
The NU-FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V /...
The NU-FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

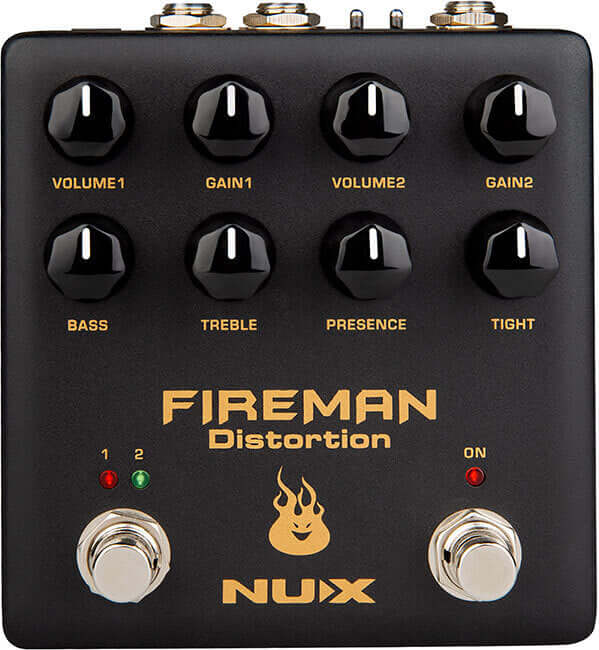

Controls:
BASS: Adjusts the low-end response of distortion sound.
TREBLE: Adjusts the high-end response of distortion sound.
PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.
TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)
VOLUME1: Adjusts the output level while in Channel1.¡¤GAIN1: Adjusts the distortion situation of the sound while in Channel1.
VOLUME2: Adjusts the output level while in Channel2.
GAIN2: Adjusts the distortion range of the sound while in Channel2.
1/2 Foot-switch: Chooses the current Channel for 1 or 2.
ON Foot-switch: Engages or disengages the distortion sound.
I/O
INPUT: Connects with your guitar or the signal from guitar side.
OUTPUT: Connects with the amplifier or to the amp side.
EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.
BFT/TB Toggle Switch: BF means buffer by-pass, TB means true By-pass
18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.
DC Jack: Connects with 9V Negative Tip power with 100ma adaptor.Highlights
Features:
Modern Brown Sound in a box.
True-bypass / Buffer-bypass toggle switch.
18V / 9V toggle switch to get different dynamic range.
2 independent GAIN, VOLUME knobs for rhythm / solo application.
